Advantages
Rapid and accurate delivery from up to 150 feet/45 meters AGL
Direct delivery from cruising altitude without need to descend
Ample clearance from ground obstacles
No standby receiver necessary
Reel up empty payload and tether for re-use
Emergency tether release
Our Concept
We allow the tethered payload to free-fall then gently come to a stop before the ground. It is faster than reeling down, more accurate than a parachute, safer and easier than landing.
Just fly your drone above the delivery waypoint, hit “Deliver”, and the RDS1 does the rest.
How it works
1. Takeoff with payload to delivery destination.
2. Payload free falls via tether and gently stops before reaching the ground.
3. RDS1 lowers payload gently until it safely reaches the ground.
4. Payload is auto-released and tether is reeled-up for re-use.
Key Features
01. Payload rapid descent and soft stop
02. Payload status detection (ground | air | drone)
03. Auto pre-flight weight check
04. Emergency payload abandon
05. Transverse tether winding
06. Passive payload lock during flight
Applications
Search and Rescue
Emergency supplies (heated blankets, life jackets) delivered precisely and quickly
Food Delivery
Food and bottled beverages arrive intact and fresh
Shore-Ship Transport
Transport port documents and time-sensitive supplies between land and sea
Mining
Easily transport samples for analysis
Medical Delivery
Bypass traffic and challenging terrain to rapidly deliver medication

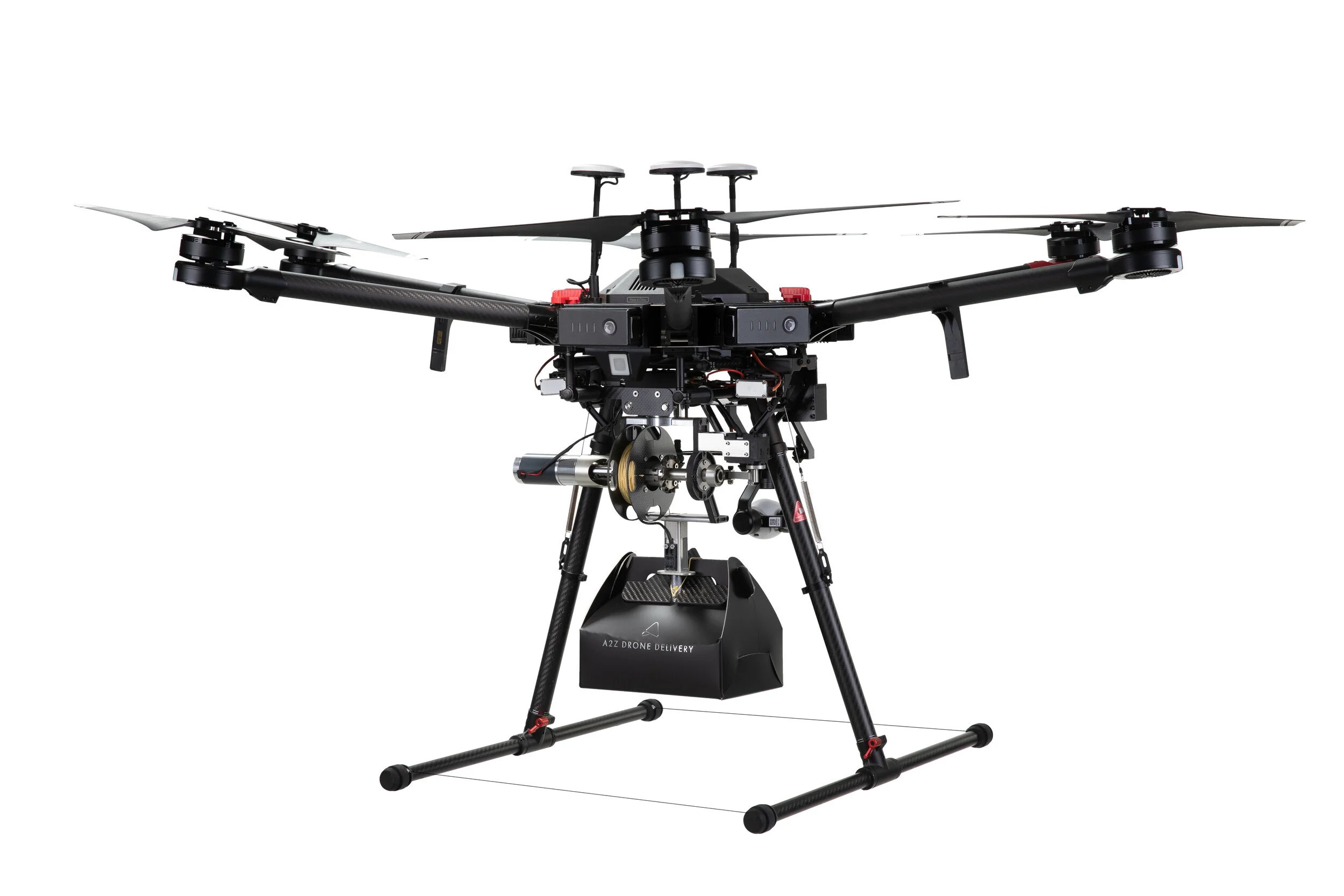

RDS1 with M600 Pro
A fully integrated delivery drone ready to fly
Patented rapid-delivery system
Onboard LIDAR and electronics with A2Z firmware
Reusable A2Z boxes
A2Z Drone Delivery Android app
DJI M600 Pro and standard accessories
Assembled and ready-to-fly out of the box
RDS1
Equip your FLEET with a state-of-the-art delivery system
Patented rapid-delivery system
Onboard LIDAR and electronics with A2Z firmware
Reusable A2Z boxes
A2Z Drone Delivery Android app
Step-by-step installation guidance
Live integration support and documentation
Technical Specifications
Max delivery payload capacity: 2 (kg) / 4.4 (lbs)
System dimensions: 35L x 18W x 27H (cm)
System weight: 1-1.5 kg (dependent on choice of motor)
Max delivery height (AGL): 150 (ft) / 45.27 (m)
Decibels at max delivery height with DJI M600 Pro: <60 (dB)
Delivery accuracy from 20m AGL: <2 (m) radius (stable wind)
Time-to-ground from max delivery height: 4 (s) (1kg payload)
Reel-up payload capacity: 300-1,000 (g) (dependent on choice of motor)
Reel-up speed: 0.5-4 (m/s) (dependent on choice of motor)
Max delivery range with DJI M600 Pro: 3.5 (km) / 2.17 (miles)
A2Z box dimensions (customizable): 20Lx14Wx8H (cm)
